FX - 41 DS SPECIFICATIONS
SHELL DESIGN
An aerodynamic shell design constructed using an advanced lightweight composite poly-alloy
FACE SHIELD
A flush-fit, quick release screw on face shield
AFX DESIGNED AMPD™ FRAMELESS DOUBLE LENS SNOW SHIELD
that is optically
correct, compound-curved, scratch-resistant and protects against UV-rays. Shield can be
removed to allow open face riding or for use with most goggles
VISOR
A removable and adjustable (40mm) screw-on visor. Shield can
also be used without the visor. Side cover kit included

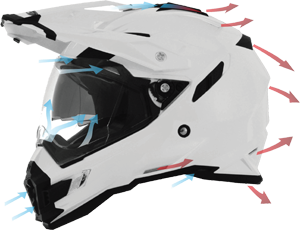

VENTILATION
17 points of ventilation with chin, side, forehead, top and rear vent. 7 intake vents and 10 exhaust vents
INNER SUN SHIELD
Smoke tinted inner flip down sun shield system with left side slide lever
MAIN SPECIFICATIONS
- This helmet model meets or exceeds both ECE 22.05 and DOT FMVSS-218 motorcycle helmet safety standards
- Retention system is Microlock (quick release)
- Provides ample ear cavity space for most speaker systems
- A clear coat finish to protect paint & graphics
- A large-size FX-41DS weighs 1.68 kg or 3.69 lbs
- Available size: XS-XXL
AFX helmet liners and cheek pads are made with a hypoallergenic and anti-microbial nylon, most of which are removable and washable.
The size of this helmet is based on a combination of four factors: outer shell size, inner EPS thickness, comfort liner thickness and cheek pad thickness. The fit of the helmet can be customized by replacing your existing cheek pads with thinner cheek pads (for a looser fit) or thicker cheek pads (for a tighter fit).
The fit can also be customized by replacing your existing comfort liner with a
thinner comfort liner (for a looser fit) or thicker comfort liner (for a tighter fit).
Please refer to the shell, liner and cheek pad compatibility chart
below. Keep in mind these components can only be replaced inside the group
of sizes contained in each size range block.
