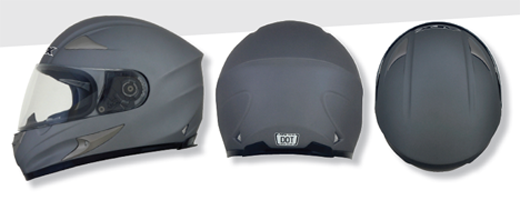

FX - 90 SPECIFICATIONS
SHELL DESIGN
An aerodynamic shell design constructed using an advanced lightweight composite poly-alloy
FACE SHIELD
A flush-fit, lock down, side-coverless face shield that is optically correct, compound-curved, scratch-resistant and protects against UV-rays
QUICK RELEASE RATCHET
Quick release shield ratchet system with shield lock
VENTILATION
7 points of ventilation with chin, side, forehead, top and rear vent. 5 intake vents and 2 exhaust vents
- This helmet model meets or exceeds both ECE 22.05 and DOT FMVSS-218 motorcycle helmet safety standards
- Retention system is a race approved Double D-RING
- Provides ample ear cavity space for most speaker systems
- There are 2 tinted shields available for this model
- A clear coat finish to protect paint & graphics
- A large-size FX-90 weighs 1.36 kg or 3.00 lbs.
- Available size: XS-XXL
AFX helmet liners and cheek pads are made with a hypoallergenic and anti-microbial nylon, most of which are removable and washable.
The size of this helmet is based on a combination of four factors: outer shell size, inner EPS thickness, comfort liner thickness and cheek pad thickness. The fit of the helmet can be customized by replacing your existing cheek pads with thinner cheek pads (for a looser fit) or thicker cheek pads (for a tighter fit). The fit can also be customized by replacing your existing comfort liner with a thinner comfort liner (for a looser fit) or thicker comfort liner (for a tighter fit).
Please refer to the shell, liner and cheek pad compatibility chart below. Keep in mind these components can only be replaced inside the group of sizes contained in each size range block.
